TGM16R100M31.7-06SA

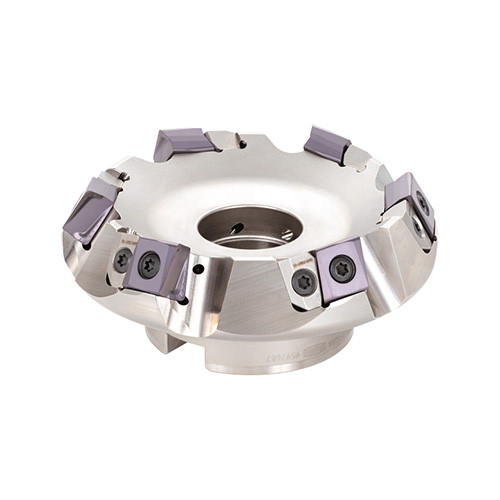

60 deg face mill for LMMU double-sided tangential inserts, with shims for extra reliability

Price: Log in For Price

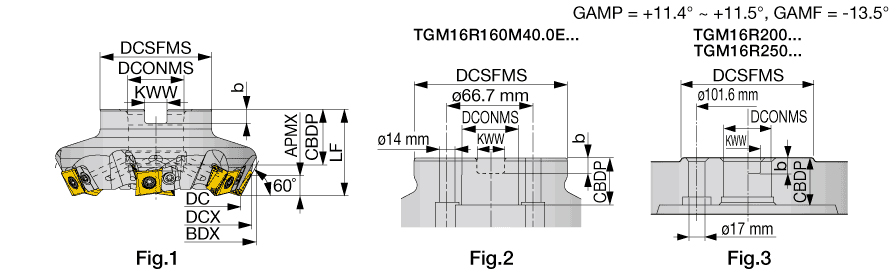

Cutting Diameter (DC/DCX) | 115.3 mm | Master Insert Identification (MIID) | LMMU160916PNER-MJ |
Cutting Diameter (DC) | 100 mm | Body Material | Steel |
Cutting Diameter Maximum (DCX) | 115.3 mm | Cutting Direction (HAND) | Right Hand |
Cutting Item Count (CICT) | 6 | Application | | Face Milling | |
Depth of Cut Maximum (APMX) | 12.4 mm | Measurement Type | Metric |
Connection Diameter Machine Side (DCONMS) | 31.75 mm | Functional Length (LF) | 50 mm |
Overall Length (OAL) | 50 mm | Unit | M |

Product Features
Family Description | 60 deg face mill for LMMU double-sided tangential inserts, with shims for extra reliability | FamilyName | TGM16-SA |
COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable Face Mills
FamilyName
TGM16-SA
BrandName
Tungaloy
