TPA10R300U0100A07
High precision shoulder square mills with triangular inserts
Price: Log in For Price

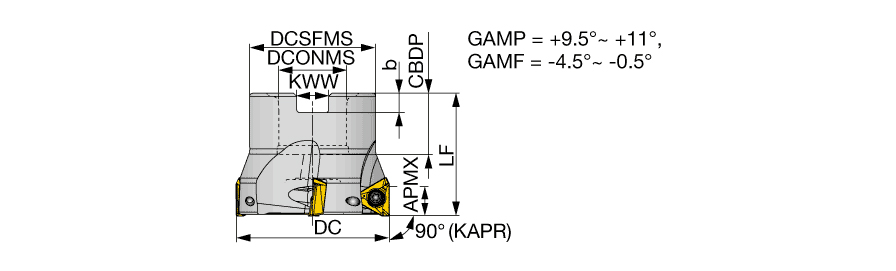

| Cutting Diameter (DC/DCX) | 3″ | Body Material | Steel |
| Cutting Diameter (DC) | 3″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 3″ | Application | | Shoulder Milling | |
| Cutting Item Count (CICT) | 7 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.394″ | Functional Length (LF) | 1.968″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Tool Type | 90 Facemills |
| Overall Length (OAL) | 1.969″ | Unit | I |
| Master Insert Identification (MIID) | TOMT100404PDER-MJ |
Product Features
| Family Description | High precision shoulder square mills with triangular inserts | FamilyName | TPA10 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
2.3810
Name
Indexable Face Mills
FamilyName
TPA10
BrandName
Tungaloy
