TASN13U2.00B0.75R05

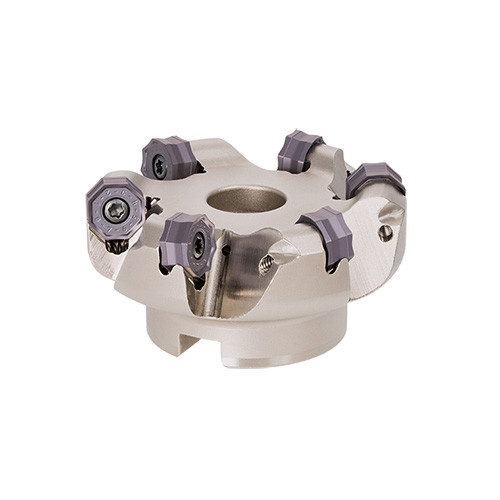

45 deg face milling cutters with double-sided square, octagon or radius inserts; Bore type
| Cutting Diameter (DC/DCX) | 2.5512″ | Body Material | Steel |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 2.5512″ | Application | | Face Milling | |
| Cutting Item Count (CICT) | 5 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.236″ | Functional Length (LF) | 1.575″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | CUTTER - BORE TYPE |
| Overall Length (OAL) | 1.575″ | Unit | I |
| Master Insert Identification (MIID) | SNMU1307ANEN-MJ |
Product Features
| Family Description | 45 deg face milling cutters with double-sided square, octagon or radius inserts; Bore type | FamilyName | TASN13 |
| Remarks | APMX may vary with insert type. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.1883
Name
Indexable Face Mills
FamilyName
TASN13
BrandName
Tungaloy
