ECC31005RU-45
Indexable chamfering cutter with large parallelogram insert

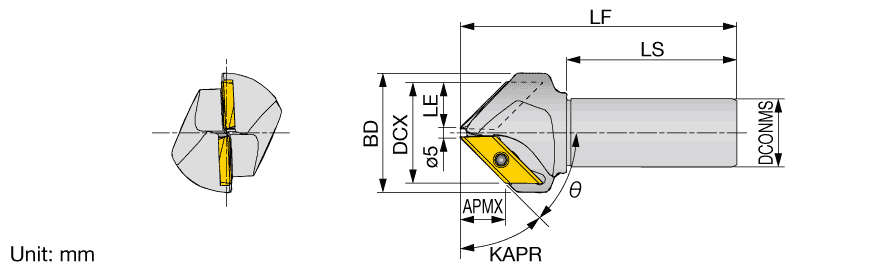

| Cutting Diameter (DC/DCX) | 1.846″ | Functional Length (LF) | 4.254″ |
| Cutting Diameter (DC) | 1.846″ | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Depth of Cut Maximum (APMX) | 0.827″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.254″ | Body Material | Steel |
| Application | | Multi Functional tools | | Shank Length (LS) | 2.281″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 2.205″ |
| Master Insert Identification (MIID) | XCET310404ER | Unit | I |
| Head Length (LH) | 1.973″ |
Product Features
| Family Description | Indexable chamfering cutter with large parallelogram insert | FamilyName | ECC31 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
1.5719
Name
Indexable End Mills
FamilyName
ECC31
BrandName
Tungaloy
