EVLX10U0.787W0.75R02
Multi-function endmill, shank type, with center cutting edge
Price: Log in For Price

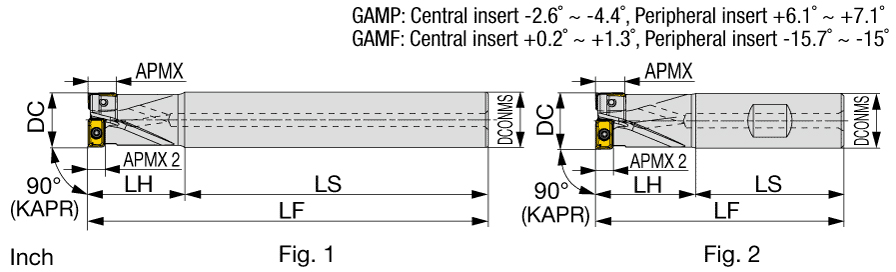

| Cutting Diameter (DC/DCX) | 0.787″ | Head Length (LH) | 1.38″ |
| Cutting Diameter (DC) | 0.787″ | Functional Length (LF) | 3.41″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.354″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 3.41″ | Measurement Type | Inch |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shoulder Milling | | Cutting Diameter Maximum (DCX) | 0.787″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Unit | I |
| Master Insert Identification (MIID) | LXMU10T308PER-MM |
Product Features
| Family Description | Multi-function endmill, shank type, with center cutting edge | FamilyName | EVLX |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
EVLX
BrandName
Tungaloy
