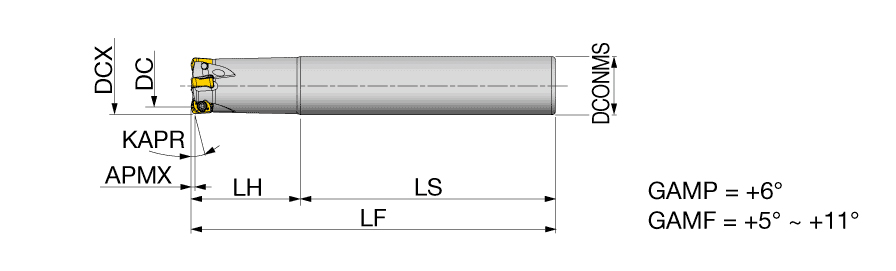

| Cutting Diameter (DC/DCX) | 0.3354″ | Head Length (LH) | 3/4″ |
| Cutting Diameter (DC) | 0.3354″ | Functional Length (LF) | 3″ |
| Cutting Item Count (CICT) | 2 | Tool Type | Fast Feed Endmill |
| Depth of Cut Maximum (APMX) | 0.02″ | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Overall Length (OAL) | 3″ | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Application | | High Feed Milling | | Cutting Diameter Maximum (DCX) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Unit | I |
| Master Insert Identification (MIID) | LNMU0202ZER-MM |
Product Features
| Family Description | High feed endmill, round shank type, with 4-corner double sided inserts | FamilyName | EXN02 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
EXN02
BrandName
Tungaloy
