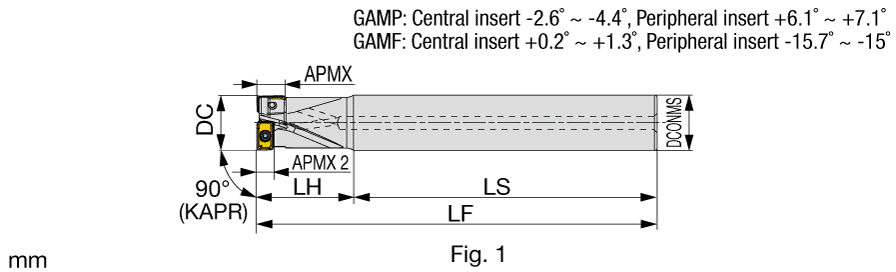

| Cutting Diameter (DC/DCX) | 13 mm | Head Length (LH) | 25 mm |
| Cutting Diameter (DC) | 13 mm | Functional Length (LF) | 120 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 5 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Multi Functional tools | Shoulder Milling | | Cutting Diameter Maximum (DCX) | 13 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Unit | M |
| Master Insert Identification (MIID) | LXMU060204PER-MM |
Product Features

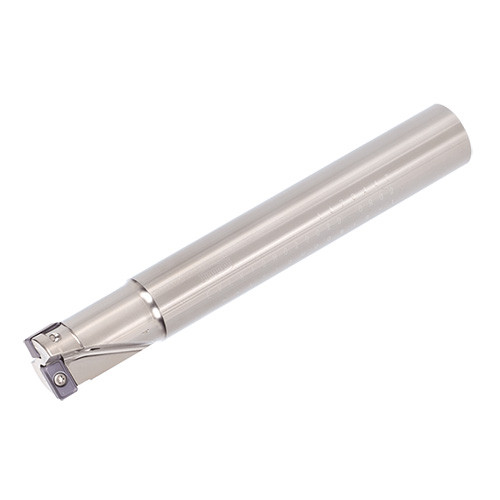

| Family Description | Multi-function endmill, shank type, with center cutting edge | FamilyName | EVLX |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
EVLX
BrandName
Tungaloy
