JSCL2CL1212F06
No-offset Screw-on toolholder with 95deg approach angle, for positive 80deg rhombic inserts
Price: Log in For Price

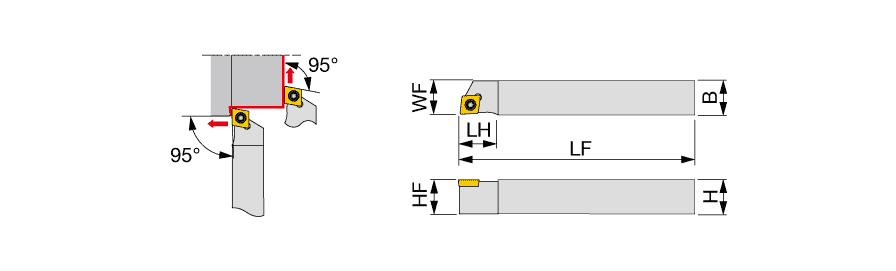

| Shank Height (H) | 12 mm | Master Insert Identification (MIID) | CCGT060202 |
| Shank Width (B) | 12 mm | Application | | For 80deg Rhombic insert | For Miniature machining | |
| Overall Length (OAL) | 85 mm | Body Material | Steel |
| Functional Length (LF) | 85 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 12 mm | Measurement Type | Metric |
| Functional Width (WF) | 12 mm | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | No-offset Screw-on toolholder with 95deg approach angle, for positive 80deg rhombic inserts | FamilyName | JSCL2CR/L |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.1280
Name
General Indexable Turning Tools
FamilyName
JSCL2CR/L
BrandName
Tungaloy
