JSVJ2BR1616X11

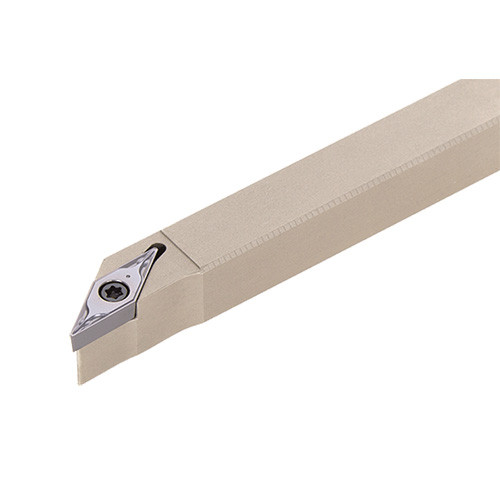

No-offset Screw-on toolholder with 93deg approach angle, for positive 35deg rhombic inserts
Price: Log in For Price

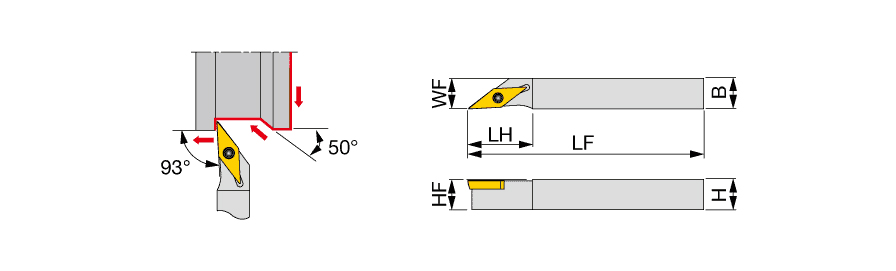

| Shank Height (H) | 16 mm | Master Insert Identification (MIID) | VBGT110302 |
| Shank Width (B) | 16 mm | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Overall Length (OAL) | 120 mm | Body Material | Steel |
| Functional Length (LF) | 120 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 21 mm | Measurement Type | Metric |
| Functional Width (WF) | 16 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | No-offset Screw-on toolholder with 93deg approach angle, for positive 35deg rhombic inserts | FamilyName | JSVJ2BR/L |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.2490
Name
General Indexable Turning Tools
FamilyName
JSVJ2BR/L
BrandName
Tungaloy
