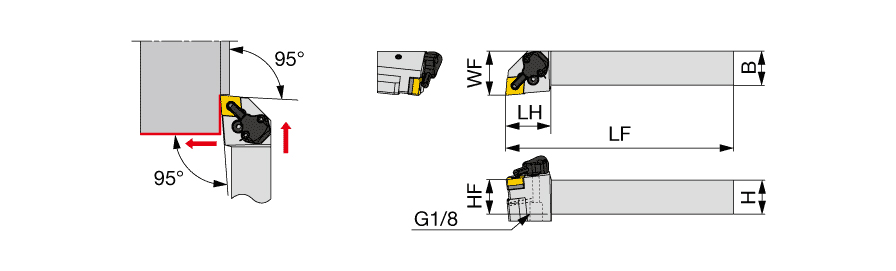

| Shank Height (H) | 20 mm | Master Insert Identification (MIID) | CNMG120408 |
| Shank Width (B) | 20 mm | Application | | For 80deg Rhombic insert | |
| Overall Length (OAL) | 125 mm | Body Material | Steel |
| Functional Length (LF) | 125 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 33 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features

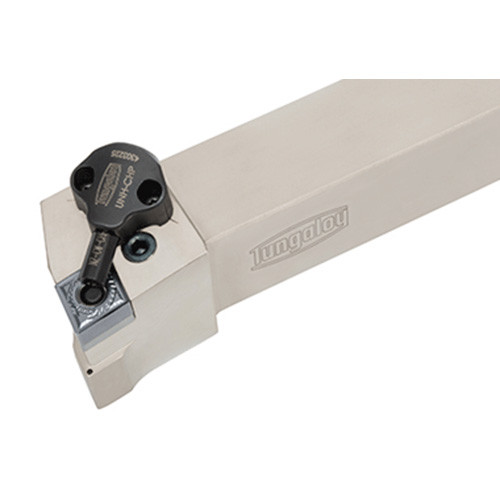

| Family Description | Lever lock type toolholder with 95 deg approach angle, for negative 80 deg rhombic inserts, with channels for high pressure coolant | FamilyName | PCLNR/L-CHP |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.5580
Name
General Indexable Turning Tools
FamilyName
PCLNR/L-CHP
BrandName
Tungaloy
