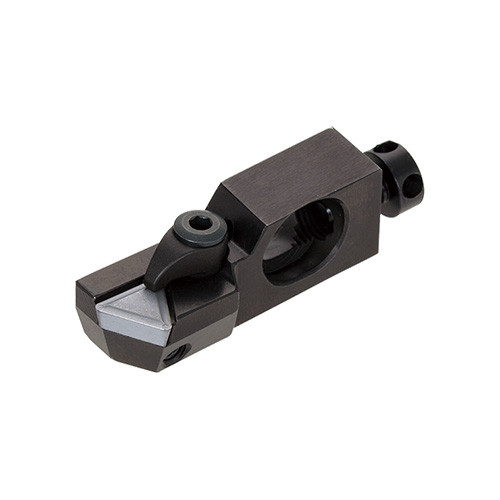

CTWPL12CA-16
Clamp on cartridge with 60deg approach angle for 11deg clearance triangle insert
Price: Log in For Price

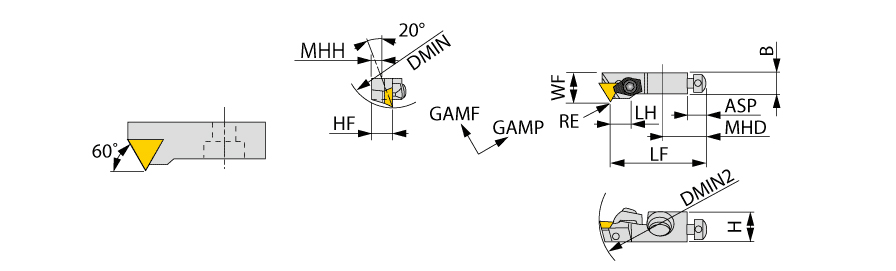

| Shank Height (H) | 19.5 mm | Master Insert Identification (MIID) | TPGN160308 |
| Shank Width (B) | 15 mm | Application | | Cartridges | |
| Overall Length (OAL) | 47 mm | Rake Angle Axial (GAMP) | 4 Degrees |
| Functional Length (LF) | 47 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 11 mm | Body Material | Steel |
| Functional Width (WF) | 20 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 50 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
Product Features
| Family Description | Clamp on cartridge with 60deg approach angle for 11deg clearance triangle insert | FamilyName | CTWP-CA |
| Remarks | Hand of the insert should be selected according to the application. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.1160
Name
General Indexable Turning Tools
FamilyName
CTWP-CA
BrandName
Tungaloy
