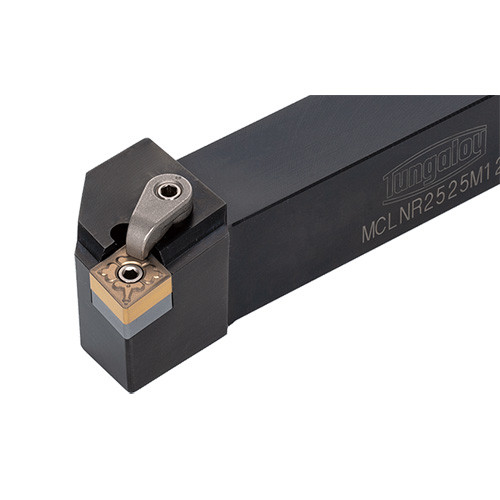

MCLNR2525M12
Multi-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts
Price: Log in For Price

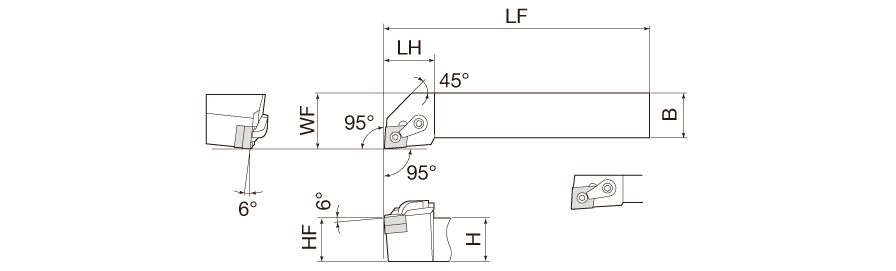

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | CNMG120408 |
| Shank Width (B) | 25 mm | Application | | For 80deg Rhombic insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 32 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Multi-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts | FamilyName | MCLNR/L |
| Remarks | When using inserts without hole, the optional parts (shim screw and chipbreaker piece) are needed. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.7830
Name
General Indexable Turning Tools
FamilyName
MCLNR/L
BrandName
Tungaloy
