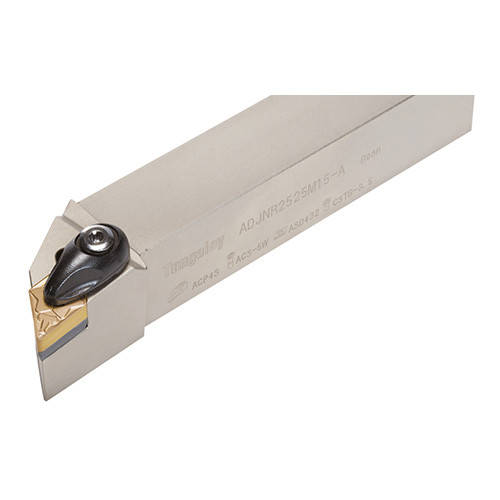

ADJNR2525M15-A
Double-clamp toolholder with 93deg approach angle, for negative 55deg rhombic inserts

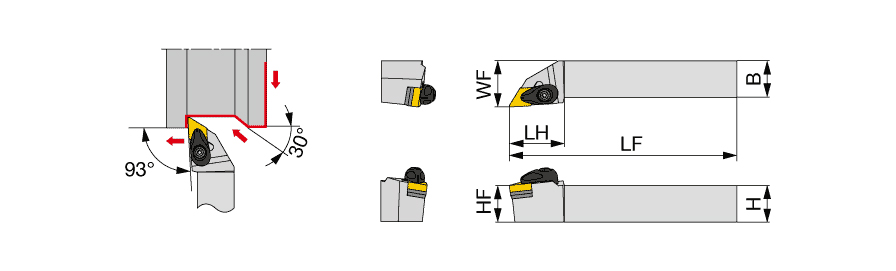

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | DNMG150408 |
| Shank Width (B) | 25 mm | Application | | For 55deg Rhombic insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 36 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Double-clamp toolholder with 93deg approach angle, for negative 55deg rhombic inserts | FamilyName | ADJNR/L |
| Remarks | Torque:Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.7300
Name
General Indexable Turning Tools
FamilyName
ADJNR/L
BrandName
Tungaloy
