ATJNR163-A
Double-clamp toolholder with 93deg approach angle, for negative triangle inserts
Price: Log in For Price

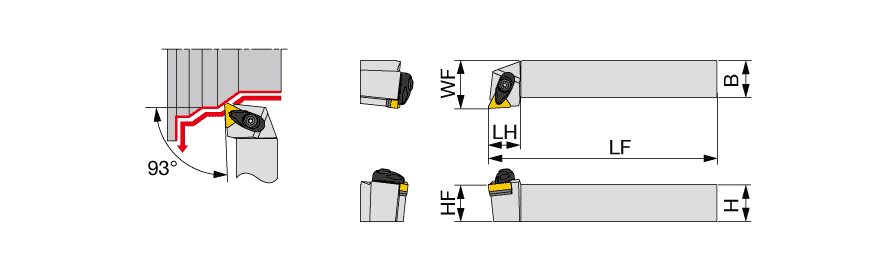

| Shank Height (H) | 1″ | Master Insert Identification (MIID) | TNMG332 |
| Shank Width (B) | 1″ | Application | | For Triangular insert | |
| Overall Length (OAL) | 6″ | Body Material | Steel |
| Functional Length (LF) | 6″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 7/8″ | Measurement Type | Inch |
| Functional Width (WF) | 1-1/4″ | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Double-clamp toolholder with 93deg approach angle, for negative triangle inserts | FamilyName | ATJNR/L |
| Remarks | Torque:Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.5278
Name
General Indexable Turning Tools
FamilyName
ATJNR/L
BrandName
Tungaloy
