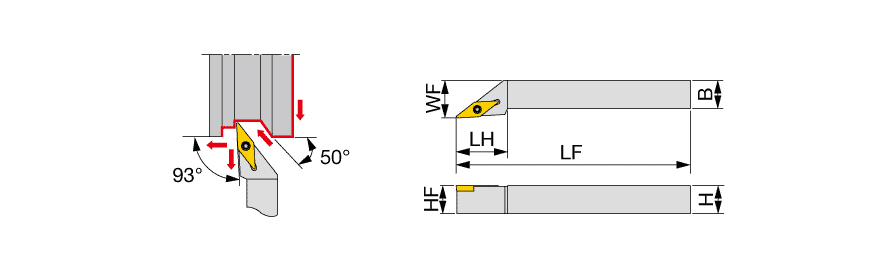

| Shank Height (H) | 3/4″ | Master Insert Identification (MIID) | VBMT221 |
| Shank Width (B) | 3/4″ | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Overall Length (OAL) | 4-1/2″ | Body Material | Steel |
| Functional Length (LF) | 4-1/2″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 1.063″ | Measurement Type | Inch |
| Functional Width (WF) | 1″ | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features

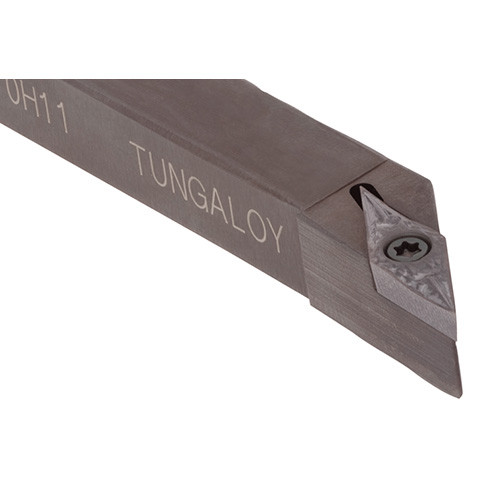

| Family Description | Screw-on clamp toolholder with 93deg approach angle, for positive 35deg rhombic inserts | FamilyName | SVJBR/L |
| Remarks | Torque: Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
SVJBR/L
BrandName
Tungaloy
