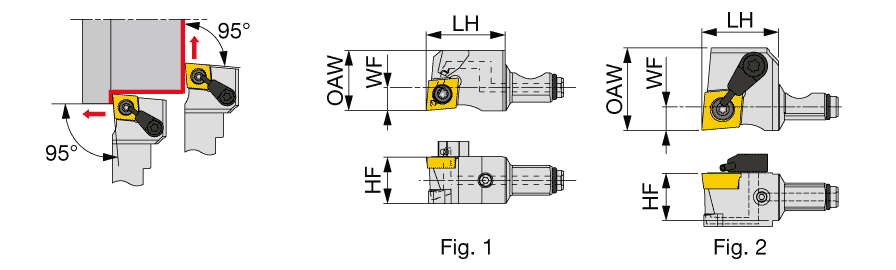

| Shank Height (H) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 0.63″ | Master Insert Identification (MIID) | CCGT32.50.5 |
| Overall Length (OAL) | 1.618″ | Application | | For Miniature machining | |
| Functional Length (LF) | 0.843″ | Body Material | Steel |
| Head Length (LH) | 0.827″ | Measurement Type | Inch |
| Functional Width (WF) | 0.315″ | Unit | I |
Product Features

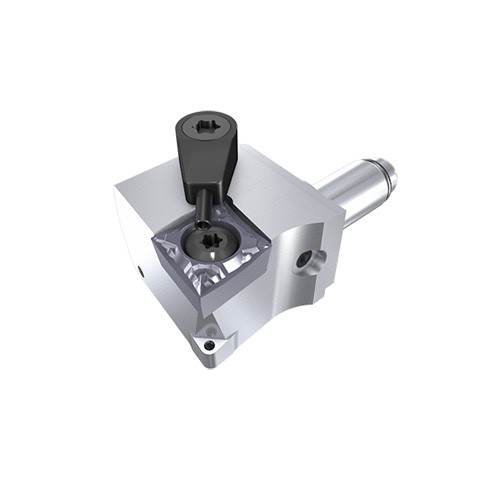

| Family Description | Modular head without offset for ISO 80 deg rhombic inserts, with high pressure coolant capability | FamilyName | QC-JSCL2CR-CHP |
| Remarks | Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
QC-JSCL2CR-CHP
BrandName
Tungaloy
