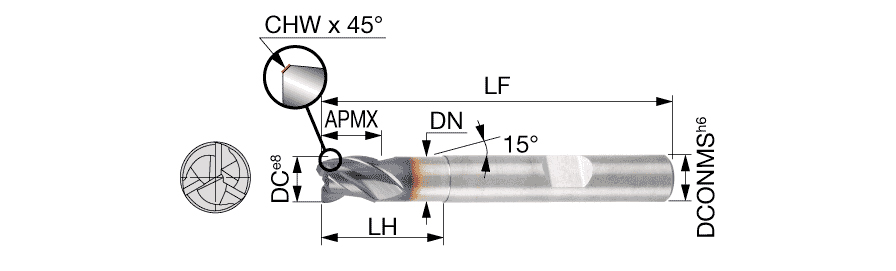

| Cutting Diameter (DC) | 2 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Chamfer Width (CHW) | 0.1 mm |
| Depth of Cut Maximum (APMX) | 3 mm | Grade | AH725 |
| Overall Length (OAL) | 57 mm | Neck Diameter (DN) | 1.9 mm |
| Cutting Edge Material | Carbide | Head Length (LH) | 7 mm |
| Coating | TiAlN | Neck Length (LN) | 7 mm |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| End Shape | Chamfer | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | 3 flute slotting endmill, 38 deg helix angle, short type | BrandName | Tungaloy |
| COO | ISRAEL | ||
| FamilyName | TECS/TECCS-E3 |
Shipping Info
Weight per item
0.0230
Name
Square & Corner Radius End Mills
FamilyName
TECS/TECCS-E3
BrandName
Tungaloy
