TERC160E3-32C16-92 KS15F

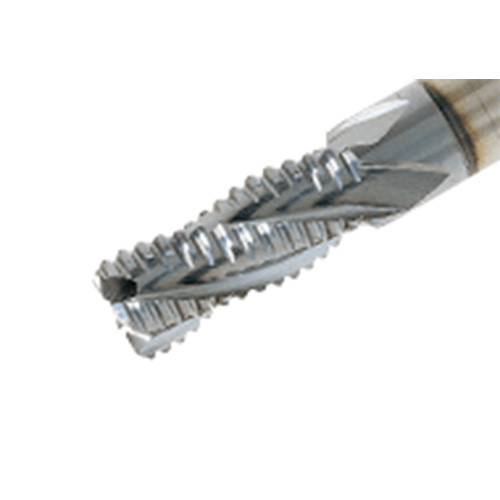

3 flute roughing endmill, 38 deg helix angle, for aluminium alloy and non-ferrous metal
Price: Log in For Price

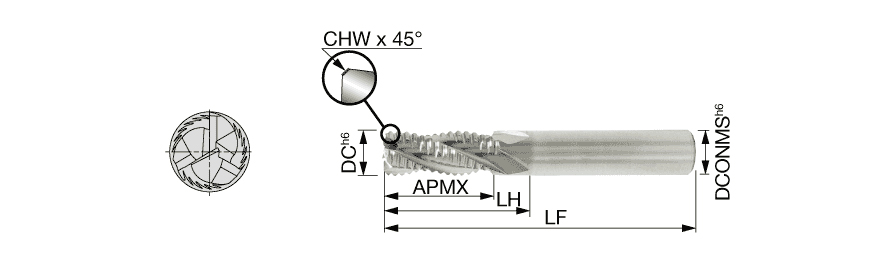

| Cutting Diameter (DC) | 16 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 32 mm | Corner Chamfer Width (CHW) | 0.6 mm |
| Overall Length (OAL) | 92 mm | Grade | KS15F |
| Cutting Edge Material | Carbide | Head Length (LH) | 44 mm |
| Coating | Uncoated | Neck Length (LN) | 44 mm |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Chamfer | Unit | M |
Product Features
| Family Description | 3 flute roughing endmill, 38 deg helix angle, for aluminium alloy and non-ferrous metal | BrandName | Tungaloy |
| COO | ISRAEL | ||
| FamilyName | TERC-E3 |
Shipping Info
Weight per item
0.2300
Name
Square & Corner Radius End Mills
FamilyName
TERC-E3
BrandName
Tungaloy
