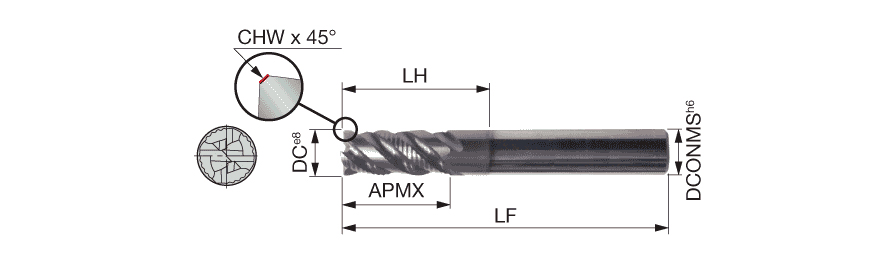

| Cutting Diameter (DC) | 10 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Corner Chamfer Width (CHW) | 0.3 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Grade | AH725 |
| Overall Length (OAL) | 72 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.035 mm/tooth |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Chamfer | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | 4 flute endmill, 45 deg helix angle, roughing and finishing combination type | BrandName | Tungaloy |
| COO | ISRAEL | ||
| FamilyName | TEFS-B44 |
Shipping Info
Weight per item
0.0790
Name
Square & Corner Radius End Mills
FamilyName
TEFS-B44
BrandName
Tungaloy
