‎TEC140A4-25C14-E83 AH725

Name: TEC140A4-25C14-E83 AH725
Brand: EcoMeister Square
SKU: TUN5651050
Price: 122.25 USD
Availability: InStock

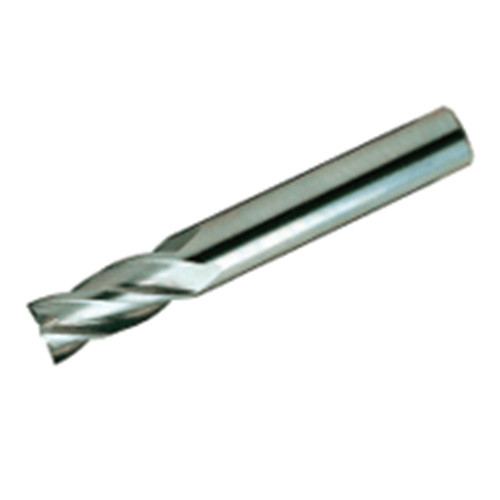

4 flute endmill, 30 deg helix angle

Item # TUN5651050

Brand: Tungaloy

Mfr#: 5651050

Price: Log in For Price

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

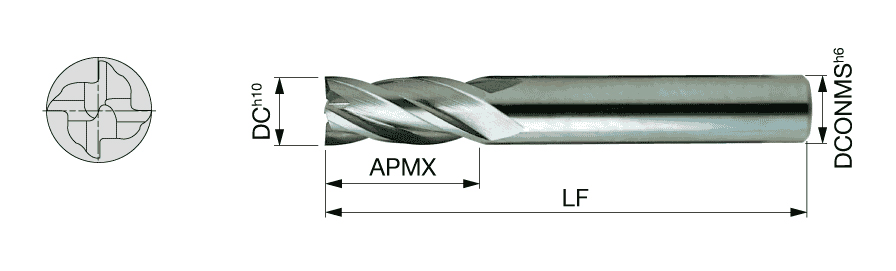

Cutting Diameter (DC)

14 mm

Applicable Material

Connection Diameter Machine Side (DCONMS)

14 mm

Application

| Shoulder Milling |

Depth of Cut Maximum (APMX)

25 mm

Grade

AH725

Overall Length (OAL)

83 mm

Tool Type

Solid carbide center cutting endmills 90

Cutting Edge Material

Carbide

Maximum Feed per Tooth (fz(max))

0.11 mm/tooth

Coating

TiAlN

Minimum Feed per Tooth (fz(min))

0.05 mm/tooth

Flute Count (NOF)

Body Material

Carbide

Shank Type

Round

Measurement Type

Metric

End Shape

Square

Unit

Product Features

Family Description

4 flute endmill, 30 deg helix angle

BrandName

Tungaloy

COO

ISRAEL

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

FamilyName

TEC-A4 (economical)

Shipping Info

Weight per item

0.1700

Name

Square & Corner Radius End Mills
