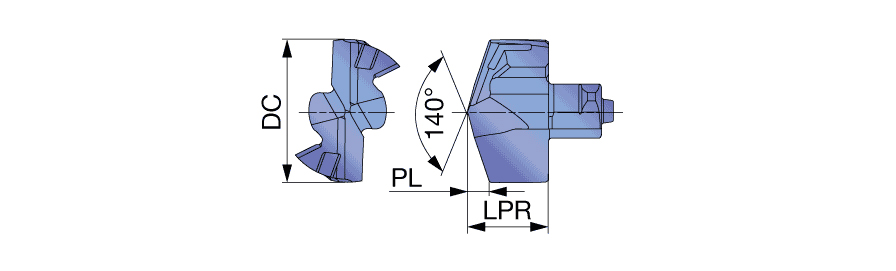

| Cutting Diameter (DC) | 10.8 mm | Measurement Type | Metric |
| Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Point Length (PL) | 1.62 mm |
| Application | | General Drilling | | Cutting Diameter Maximum (DCX) | 10.8 mm |
| Grade | KS15F | Cutting Diameter Minimum (DCN) | 10.8 mm |
| Tool Type | Drilling Heads | Coating | Uncoated |
| Protruding Length (LPR) | 6.05 mm | Body Material | Carbide |
| Insert Seat Size Code (SSC) | 10 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features

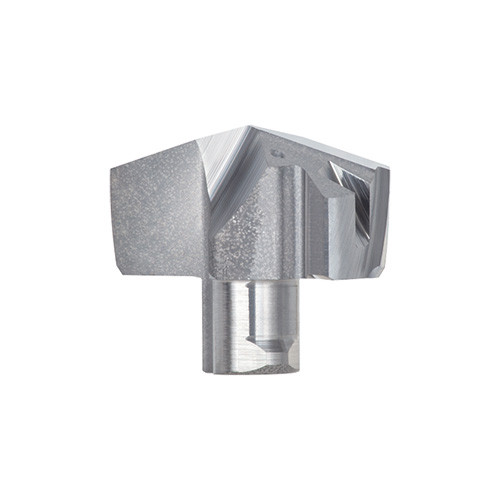

| Family Description | Drill head for non-ferrous metals | COO | JAPAN |
| Remarks | Head diameter (DC): 6.8 17.9 / Head diameter tolerance: +0.010 / 0 Head diameter (DC): 18.0 19.9 / Head diameter tolerance: +0.012 / 0 |
Shipping Info
Weight per item
0.0000
