MTEC0808C1418NPT AH725

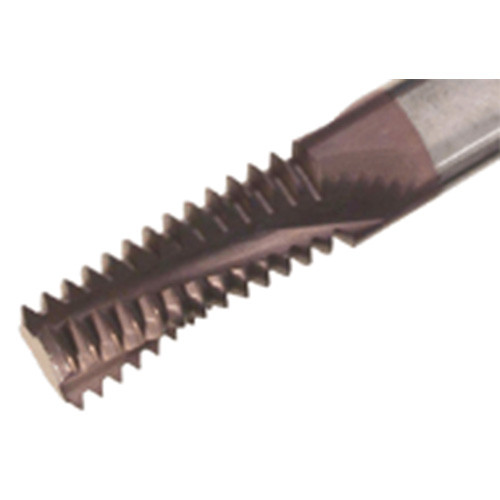

Solid carbide threading endmills for external or internal NPT thread profile.
Price: Log in For Price

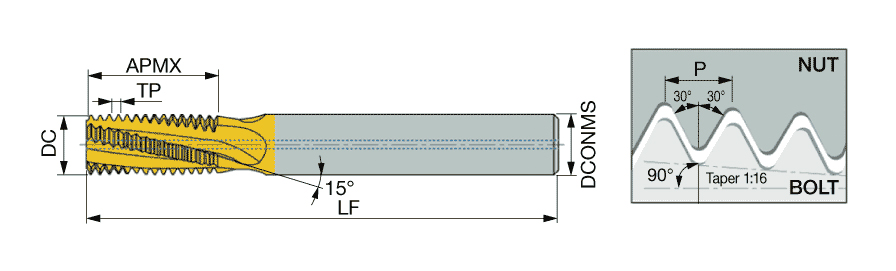

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Threads per Inch Maximum (TPIX) | 18 |
| Cutting Diameter (DC) | 0.315″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 2.52″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | AH725 |
| Coating | TiAlN | Tool Type | Solid carbide thread mills |
| Application | | Ext. Thread Milling | Int. Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | I |
| Threads per Inch Minimum (TPIN) | 18 |
Product Features
| Family Description | Solid carbide threading endmills for external or internal NPT thread profile. | ||
| COO | ISRAEL |
Shipping Info
Weight per item
0.0948
