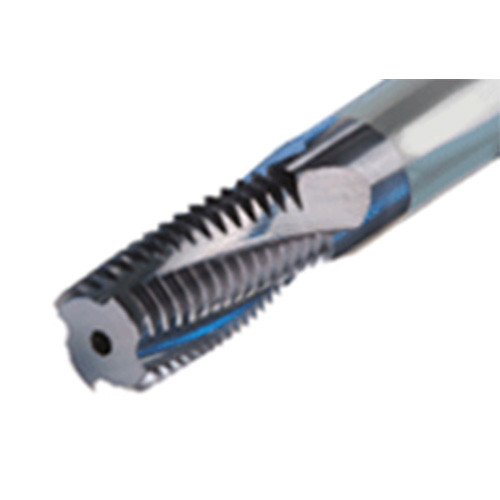

MTECB1616E3714UN AH725
Solid carbide threading endmills with coolant holes for internal UN thread profile.

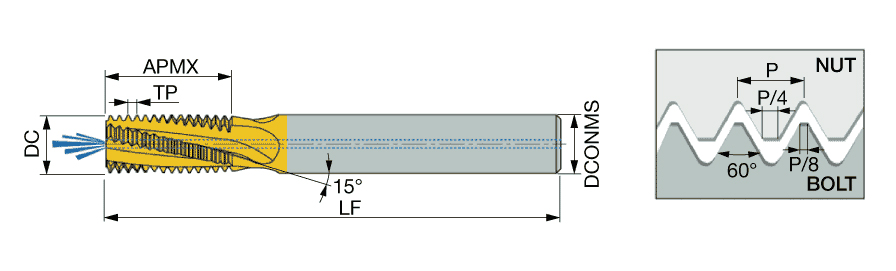

| Connection Diameter Machine Side (DCONMS) | 0.63″ | Threads per Inch Maximum (TPIX) | 14 Thrd/in |
| Cutting Diameter (DC) | 0.6299″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 4.134″ | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Grade | AH725 |
| Coating | TiAlN | Tool Type | Solid carbide thread mills |
| Application | | Int. Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | I |
| Threads per Inch Minimum (TPIN) | 14 Thrd/in |
Product Features
| Family Description | Solid carbide threading endmills with coolant holes for internal UN thread profile. | ||
| COO | ISRAEL |
Shipping Info
Weight per item
0.5864

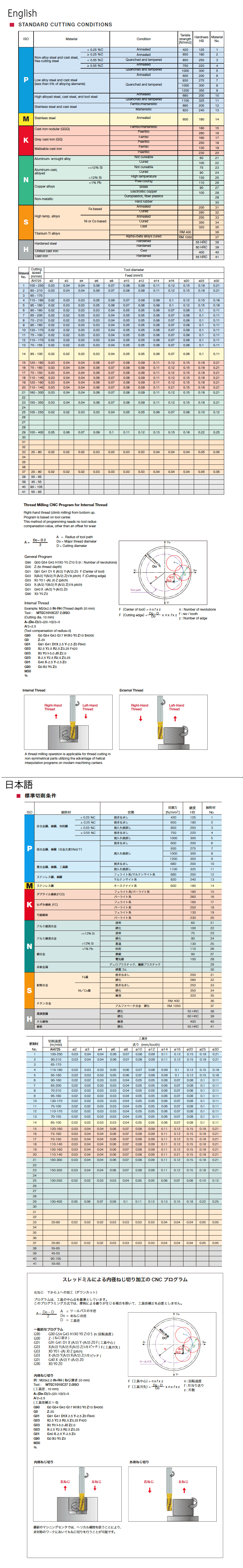

Related Documentation
