‎VCA120L05.0A45-04S08 AH725

Name: VCA120L05.0A45-04S08 AH725
Brand: TungMeister Chamfering
SKU: TUN6859262
Price: 120.80 USD
Availability: InStock

Chamfering, 4, 6 flutes, chamfering angle: 45 degree

Item # TUN6859262

Brand: Tungaloy

Mfr#: 6859262

UNSPSC: 23241614

Price: Log in For Price

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Application

| Multi Functional tools |

Grade

AH725

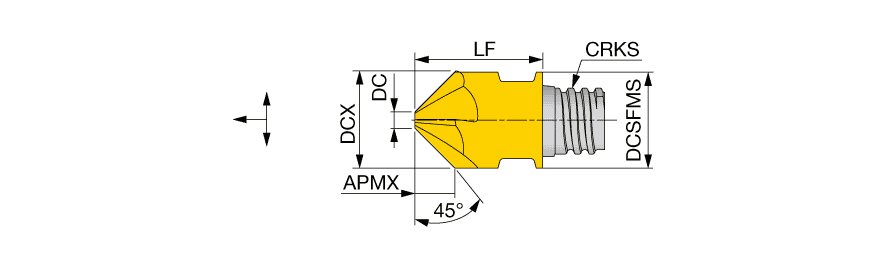

Cutting Diameter (DC)

1.95 mm

Coating

TiAlN

Applicable Material

Tool Cutting Edge Angle (KAPR)

45 Degrees

Flute Count (NOF)

Measurement Type

Metric

Cutting Diameter Maximum (DCX)

12 mm

Cutting Edge Material

Carbide

Depth of Cut Maximum (APMX)

5 mm

Tool Type

Solid chamfering endmills

Functional Length (LF)

16.5 mm

Body Material

Carbide

Flute Helix Angle (FHA)

0 Degrees

Unit

Product Features

Family Description

Chamfering, 4, 6 flutes, chamfering angle: 45 degree

FamilyName

VCA-04,06

Remarks

Torque:Recommended torque (Nm) for clamping.

BrandName

Tungaloy

COO

ISRAEL

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Shipping Info

Weight per item

0.0630

Name

Solid End Mill Heads
