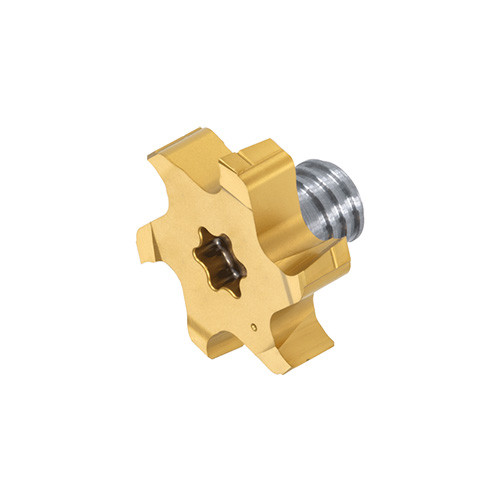

‎VTB250W6.00R04-06S10 GH130

Name: VTB250W6.00R04-06S10 GH130
Brand: TungMeister Slotting
SKU: TUN6859435
Price: 114.70 USD
Availability: InStock

Slotting, 6 flutes, for T-slotting

Item # TUN6859435

Brand: Tungaloy

Mfr#: 6859435

Price: Log in For Price

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Application

| Slot Milling |

Flute Helix Angle (FHA)

0 Degrees

Cutting Diameter (DC)

25 mm

Grade

GH130

Applicable Material

| Steel | Stainless Steel | Cast Iron |

Coating

TiCNO

Flute Count (NOF)

Tool Cutting Edge Angle (KAPR)

90 Degrees

Corner Radius (RE)

0.4 mm

Measurement Type

Metric

Cutting Diameter Maximum (DCX)

25 mm

Cutting Edge Material

Carbide

Depth of Cut Maximum (APMX)

6 mm

Tool Type

Solid "T" slot cutters

Cutting Width (CW)

6 mm

Body Material

Carbide

Functional Length (LF)

6.4 mm

Unit

Product Features

Family Description

Slotting, 6 flutes, for T-slotting

FamilyName

VTB-06

Remarks

Torque: Recommended torque (Nm) for clamping.

BrandName

Tungaloy

COO

ISRAEL

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Shipping Info

Weight per item

0.0950

Name

Solid End Mill Heads
