KUSTS62-X.XXX

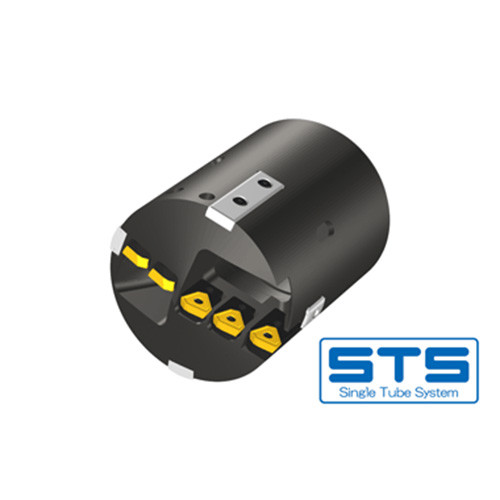

Single Tube Drills with Inner Single Start Thread connection and Cartridges, dia= 1.496 - 11.574 inch. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

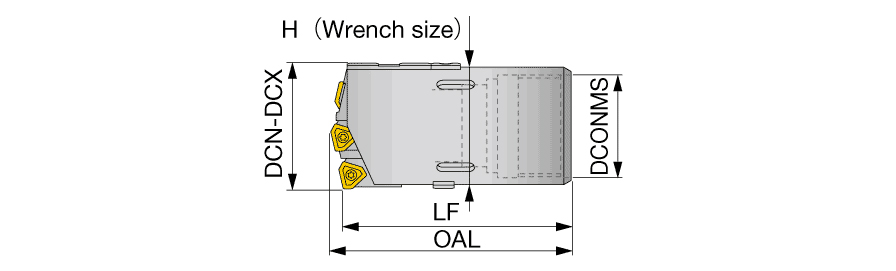

| Application | | BTA system | | Cutting Diameter Maximum (DCX) | 2.952″ |
| Connection Diameter Machine Side (DCONMS) | 2.323″ | Measurement Type | Inch |
| Functional Length (LF) | 4.724″ | Body Material | Steel |
| Overall Length (OAL) | 5.079″ | Unit | I |
| Cutting Diameter Minimum (DCN) | 2.678″ |
Product Features
| Family Description | Single Tube Drills with Inner Single Start Thread connection and Cartridges, dia= 1.496 - 11.574 inch. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | JAPAN |
| Remarks | These products are made to order on request. For inserts and spare parts, click on "More Info". |
Shipping Info
Weight per item
0.0000
