UTT27E-X.XXX

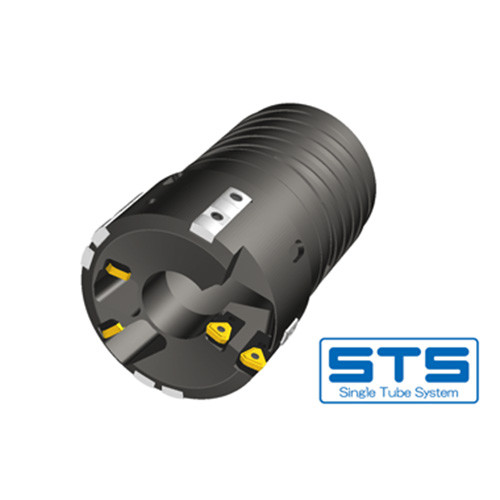

Single Tube Trepanning Drills with Outer 4 Start Thread connection and Cartridges, dia= 3.937 - 12.913 inch. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
Price: Log in For Price

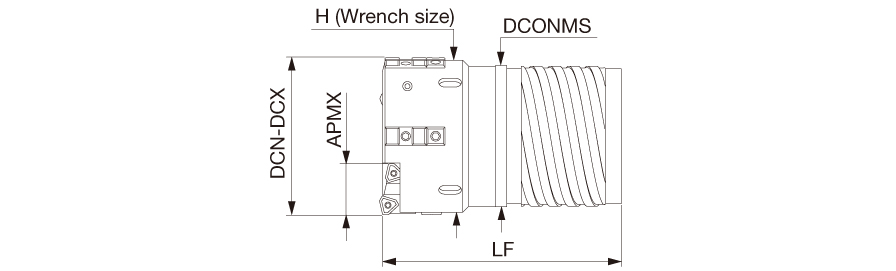

| Application | | BTA system | | Cutting Diameter Maximum (DCX) | 8.188″ |
| Connection Diameter Machine Side (DCONMS) | 7.283″ | Measurement Type | Inch |
| Functional Length (LF) | 9.803″ | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 7.717″ | Unit | I |
Product Features
| Family Description | Single Tube Trepanning Drills with Outer 4 Start Thread connection and Cartridges, dia= 3.937 - 12.913 inch. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | JAPAN |
| Remarks | These products are made to order on request. |
Shipping Info
Weight per item
0.0000
