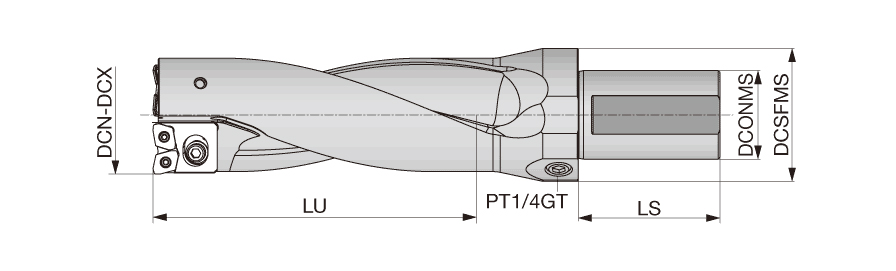

| Usable Length (LU) | 155 mm | Cutting Diameter Maximum (DCX) | 62 mm |
| Application | | General Drilling | | Flange Diameter (DF) | 75 mm |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | - |
| Shank Length (LS) | 80 mm | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 57 mm | Unit | M |
Product Features
| Family Description | TungDrillBig series, Body, L/D=2.5, dia=55 - 80mm, diameter adjustable with setting plate | COO | JAPAN |
Shipping Info
Weight per item
3.7000
