TDSU1125-03

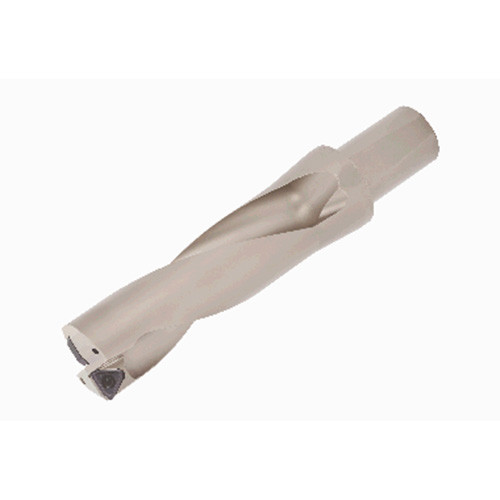

TungSix-Drill Indexable insert drills, L/D=3, Whistle notch

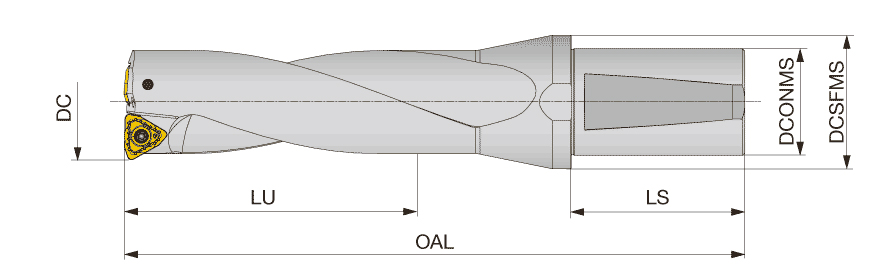

| Cutting Diameter (DC) | 1-1/8″ | Cutting Diameter Maximum (DCX) | 1-1/8″ |
| Usable Length (LU) | 3.418″ | Flange Diameter (DF) | 1.575″ |
| Application | | General Drilling | | Point Length (PL) | 0.043″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | WWMU08X408R-DJ |
| Shank Length (LS) | 2.28″ | Body Material | Steel |
| Functional Length (LF) | 4.737″ | Decimal Equivalent | 1.125″ |
| Overall Length (OAL) | 7.06″ | Unit | I |
| Cutting Diameter Minimum (DCN) | 1-1/8″ |
Product Features
| Family Description | TungSix-Drill Indexable insert drills, L/D=3, Whistle notch | COO | JAPAN |
Shipping Info
Weight per item
1.8144
