CCGT 21.50.5 FL-J10 SH725

Name: CCGT 21.50.5 FL-J10 SH725
Brand: StreamJetBar
SKU: TUN6737000
Price: 21.65 USD
Availability: InStock

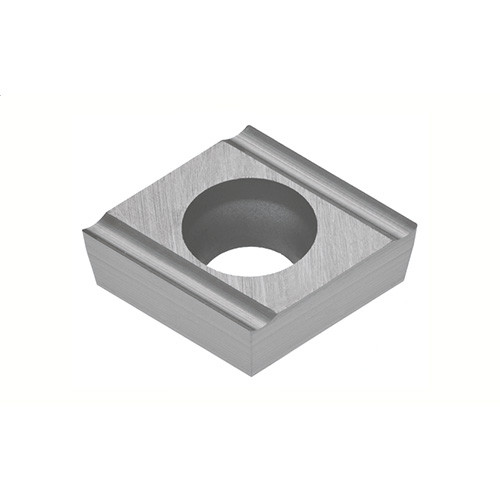

Positive 7 deg relief angle, G class, 80 deg rhombic insert for finishing to medium cutting

Item # TUN6737000

Brand: Tungaloy

Mfr#: 6737000

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Applicable Material

Min D.O.C.

0.0004″

Application

| Inserts |

Depth of Cut Maximum (APMX)

0.1654″

Corner Radius (RE)

0.008″

Min. Turning Feed (ft(min))

0.0004 ″/rev

Cutting Edge Length (L)

0.256″

Max. Turning Feed (ft(max))

0.002 ″/rev

Insert Thickness (S)

0.094″

Clearance Angle Major (AN)

7 Degrees

Inscribed Circle Diameter (IC)

1/4″

Cutting Direction (HAND)

Left Hand

Cutting Edge Material

Carbide

Chip Breaker Type

J10

Coating

TiAlN

Measurement Type

Inch

Grade

SH725

Body Material

Carbide

Fixing Hole Diameter (D1)

0.11″

Cutting Edge Effective Length (LE)

0.238″

Tool Type

Turn Positive Inserts

Unit

Product Features

Family Description

Positive 7 deg relief angle, G class, 80 deg rhombic insert for finishing to medium cutting

FamilyName

CCGTR/L-J10

Remarks

"F" included in designation means sharp edge.

BrandName

Tungaloy

COO

JAPAN

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Shipping Info

Weight per item

0.0485

Name

Turning Indexable Inserts
