TCMT 21.51-24 T9225

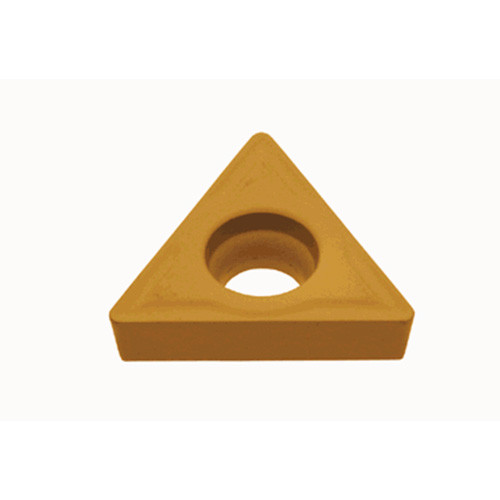

Positive 7deg relief ang., M class, triangular insert, for medium cutting
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0196″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1181″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.433″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | 24 |
| Coating | Ti-compound+Al2O3+TiN | Measurement Type | Inch |
| Grade | T9225 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Cutting Edge Effective Length (LE) | 0.378″ |
| Tool Type | Turn Positive Inserts | Unit | I |
Product Features
| Family Description | Positive 7deg relief ang., M class, triangular insert, for medium cutting | BrandName | Tungaloy |
| COO | JAPAN | ||
| FamilyName | TCMT-24 |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
TCMT-24
BrandName
Tungaloy
