3QP-TCGW 32.52 BXA20

Name: 3QP-TCGW 32.52 BXA20
Brand: StreamJetBar
SKU: TUN6790968
Price: 128.10 USD
Availability: InStock

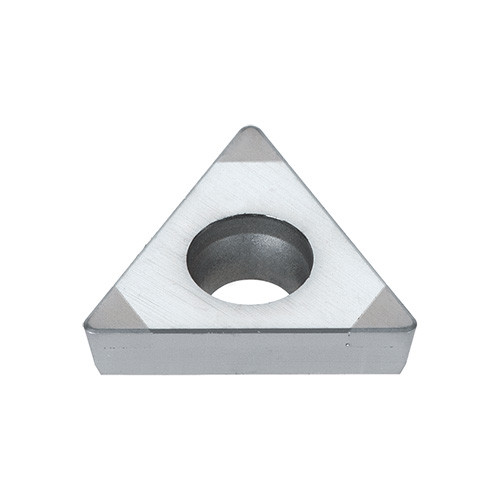

Positive 7 deg relief ang., G class, triangular CBN insert

Item # TUN6790968

Brand: Tungaloy

Mfr#: 6790968

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Applicable Material

| Hard Materials |

Min D.O.C.

0.002″

Application

| Inserts |

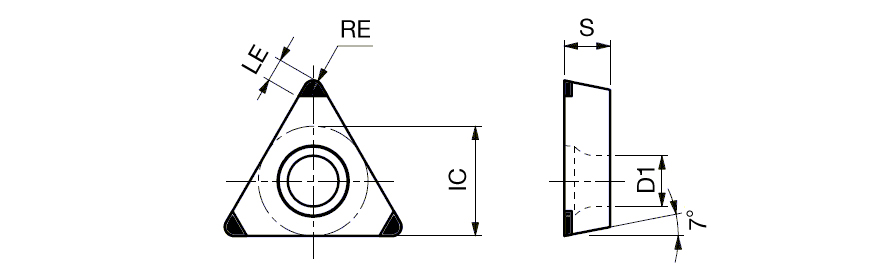

Depth of Cut Maximum (APMX)

0.0197″

Corner Radius (RE)

0.0315″

Min. Turning Feed (ft(min))

0.0012 ″/rev

Cutting Edge Length (L)

0.65″

Max. Turning Feed (ft(max))

0.0098 ″/rev

Insert Thickness (S)

0.156″

Clearance Angle Major (AN)

7 Degrees

Inscribed Circle Diameter (IC)

3/8″

Cutting Direction (HAND)

Neutral

Cutting Edge Material

PCBN

Chip Breaker Type

FT-CBN

Coating

TiAlN

Measurement Type

Inch

Grade

BXA20

Body Material

Carbide

Fixing Hole Diameter (D1)

0.173″

Cutting Edge Effective Length (LE)

0.075″

Tool Type

Turn Ultra hard Inserts

Unit

Product Features

Family Description

Positive 7 deg relief ang., G class, triangular CBN insert

BrandName

Tungaloy

COO

JAPAN

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

FamilyName

3QP-TCGW

Shipping Info

Weight per item

0.0309

Name

Turning Indexable Inserts
