CNMG 434 PM T9215

Name: CNMG 434 PM T9215
Brand: TungTurn
SKU: TUN6796068
Price: 17.85 USD
Availability: InStock

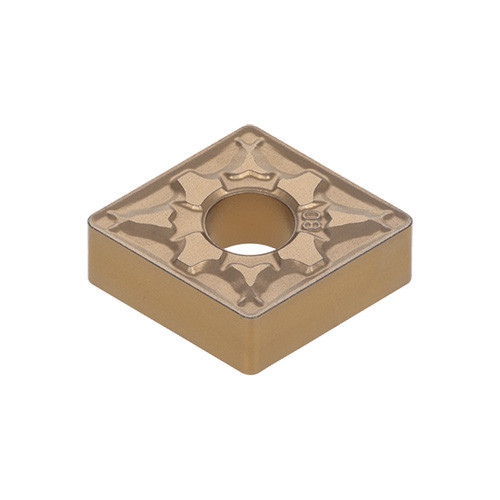

Negative relief ang., M class, 80 deg rhombic insert for medium cutting

Item # TUN6796068

Brand: Tungaloy

Mfr#: 6796068

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Applicable Material

| Steel | Stainless Steel | Cast Iron |

Min D.O.C.

0.0197″

Application

| Inserts |

Depth of Cut Maximum (APMX)

0.2165″

Corner Radius (RE)

0.063″

Min. Turning Feed (ft(min))

0.0059 ″/rev

Cutting Edge Length (L)

0.508″

Max. Turning Feed (ft(max))

0.0197 ″/rev

Insert Thickness (S)

0.187″

Cutting Direction (HAND)

Neutral

Inscribed Circle Diameter (IC)

1/2″

Chip Breaker Type

Nega-PM

Cutting Edge Material

Carbide

Measurement Type

Inch

Coating

Ti-compound+Al2O3+TiN

Body Material

Carbide

Grade

T9215

Cutting Edge Effective Length (LE)

0.38″

Fixing Hole Diameter (D1)

0.203″

Unit

Tool Type

Turn Negative Inserts

Product Features

Family Description

Negative relief ang., M class, 80 deg rhombic insert for medium cutting

BrandName

Tungaloy

COO

JAPAN

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

FamilyName

CNMG-PM

Shipping Info

Weight per item

0.0000

Name

Turning Indexable Inserts
