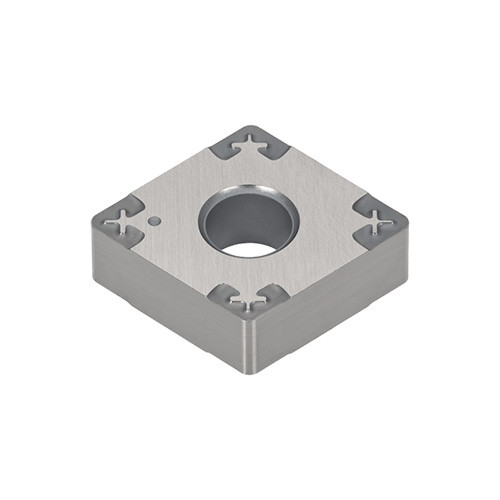

CNGG 432-01 NS520
Negative relief ang., G class, 80deg rhombic insert, for precision finishing
Price: Log in For Price
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0007″ |
| Corner Radius (RE) | 0.0314″ | Depth of Cut Maximum (APMX) | 0.0197″ |
| Cutting Edge Length (L) | 0.508″ | Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | Nega Type-01 |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS520 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Unit | I |
Product Features
| Family Description | Negative relief ang., G class, 80deg rhombic insert, for precision finishing | BrandName | Tungaloy |
| COO | JAPAN | ||
| FamilyName | CNGG-01 |
Shipping Info
Weight per item
0.1257
Name
Turning Indexable Inserts
FamilyName
CNGG-01
BrandName
Tungaloy
