| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0393″ |
| Corner Radius (RE) | 0.0629″ | Depth of Cut Maximum (APMX) | 0.1575″ |
| Cutting Edge Length (L) | 0.76″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Insert Thickness (S) | 1/4″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 3/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Nega-SA |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | KS20 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.312″ | Unit | I |
Product Features

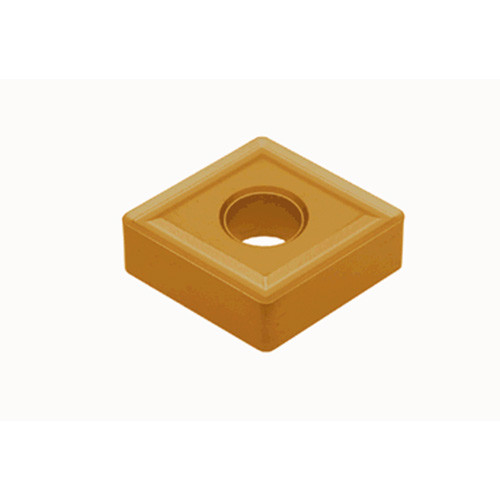

| Family Description | Negative relief ang., M class, 80deg rhombic insert, for medium cutting of stainless steel etc. | BrandName | Tungaloy |
| COO | JAPAN | ||
| FamilyName | CNMG-SA |
Shipping Info
Weight per item
0.6658
Name
Turning Indexable Inserts
FamilyName
CNMG-SA
BrandName
Tungaloy
