2QP-CNGA 432 BX380

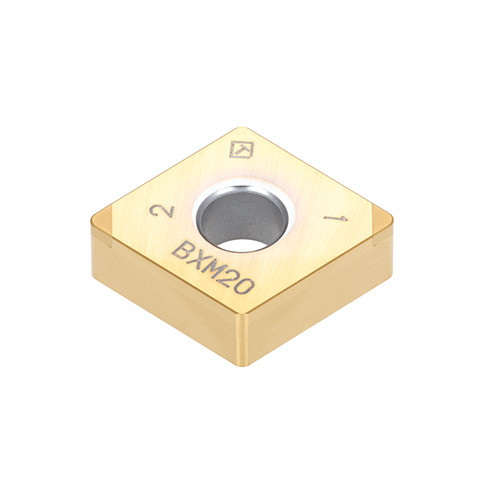

Negative relief angle, M/G class, 80 deg rhombic CBN insert
Price: Log in For Price

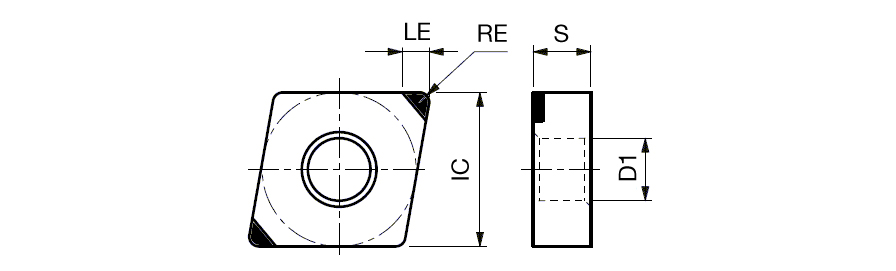

| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.508″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | FT-CBN |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | BX380 | Cutting Edge Effective Length (LE) | 0.087″ |
| Fixing Hole Diameter (D1) | 0.203″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief angle, M/G class, 80 deg rhombic CBN insert | FamilyName | 2QP-CNM/GA |
| Remarks | The first letter "T" of designation means 10 pieces per package. The last letter of designation means Edge preparation (EP) as below. Without letter, SR: Standard EP F: Sharp edge E: EP for preventing vibration and for suppressing work deformation L: EP for reducing flank wear LF: EP for reducing burrs LC: EP for reducing crater wear LT, H, HC: EP for reducing fracture FW, MW, W, WL, WJ, WG: Wiper | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0507
Name
Turning Indexable Inserts
FamilyName
2QP-CNM/GA
BrandName
Tungaloy
