TCMT 21.51 DIA DX120

Name: TCMT 21.51 DIA DX120
Brand: StreamJetBar
SKU: TUN6822166
Price: 127.80 USD
Availability: InStock

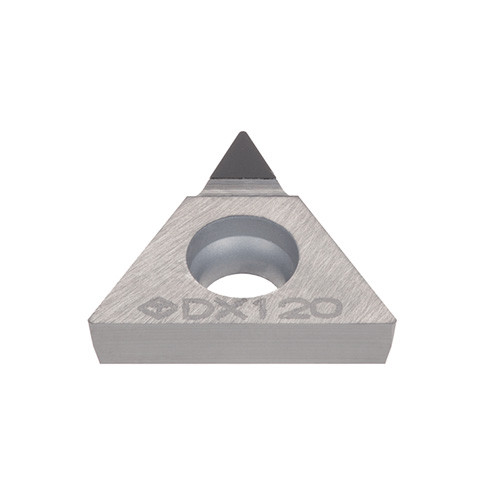

Positive 7 deg relief angle, M class, triangular PCD insert

Item # TUN6822166

Brand: Tungaloy

Mfr#: 6822166

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Applicable Material

| Aluminum / Non-Ferrous Materials |

Min D.O.C.

0.002″

Application

| Inserts |

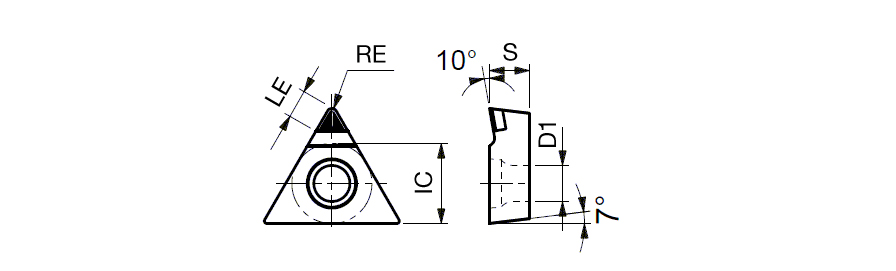

Depth of Cut Maximum (APMX)

0.0394″

Corner Radius (RE)

0.016″

Min. Turning Feed (ft(min))

0.002 ″/rev

Cutting Edge Length (L)

0.433″

Max. Turning Feed (ft(max))

0.0079 ″/rev

Insert Thickness (S)

0.094″

Clearance Angle Major (AN)

7 Degrees

Inscribed Circle Diameter (IC)

1/4″

Cutting Direction (HAND)

Neutral

Cutting Edge Material

PCD

Chip Breaker Type

BR-DIA

Coating

Uncoated

Measurement Type

Inch

Grade

DX120

Body Material

Carbide

Fixing Hole Diameter (D1)

0.11″

Cutting Edge Effective Length (LE)

0.087″

Tool Type

Turn Ultra hard Inserts

Unit

Product Features

Family Description

Positive 7 deg relief angle, M class, triangular PCD insert

BrandName

Tungaloy

COO

JAPAN

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

FamilyName

TCMT-DIA

Shipping Info

Weight per item

0.0265

Name

Turning Indexable Inserts
