CCGT 432 AL KS05F

Name: CCGT 432 AL KS05F
Brand: StreamJetBar
SKU: TUN6843409
Price: 25.65 USD
Availability: InStock

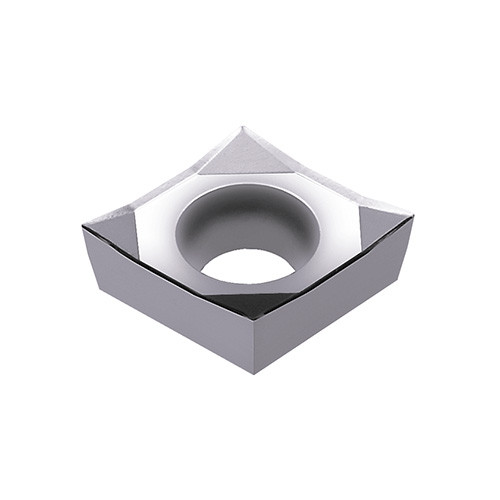

Positive 7deg relief ang., G class, 80deg rhombic insert, for aluminum cutting

Item # TUN6843409

Brand: Tungaloy

Mfr#: 6843409

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Applicable Material

| Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |

Min D.O.C.

0.0196″

Application

| Inserts |

Depth of Cut Maximum (APMX)

0.1969″

Corner Radius (RE)

0.0314″

Min. Turning Feed (ft(min))

0.0079 ″/rev

Cutting Edge Length (L)

0.508″

Max. Turning Feed (ft(max))

0.0197 ″/rev

Insert Thickness (S)

0.187″

Clearance Angle Major (AN)

7 Degrees

Inscribed Circle Diameter (IC)

1/2″

Cutting Direction (HAND)

Neutral

Cutting Edge Material

Carbide

Chip Breaker Type

Coating

Uncoated

Measurement Type

Inch

Grade

KS05F

Body Material

Carbide

Fixing Hole Diameter (D1)

0.217″

Cutting Edge Effective Length (LE)

0.444″

Tool Type

Turn Inserts AL, HTA Geometric

Unit

Product Features

Family Description

Positive 7deg relief ang., G class, 80deg rhombic insert, for aluminum cutting

BrandName

Tungaloy

COO

JAPAN

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

FamilyName

CCGT-AL

Shipping Info

Weight per item

0.1720

Name

Turning Indexable Inserts
