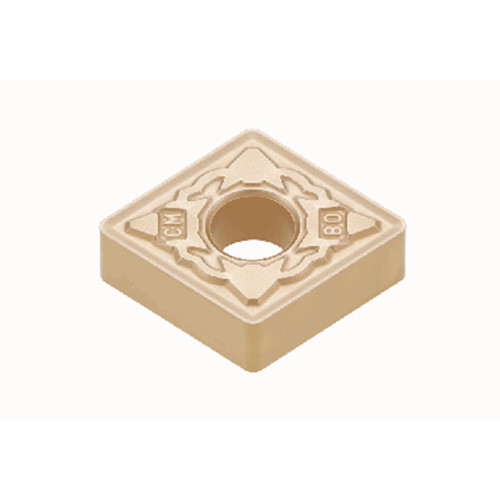

CNMG 433 CM T5105

Name: CNMG 433 CM T5105
Brand: TungTurn
SKU: TUN6850139
Price: 16.40 USD
Availability: InStock

Negative relief ang., M class, 80deg rhombic insert, for medium cutting of grey and ductile cast iron

Item # TUN6850139

Brand: Tungaloy

Mfr#: 6850139

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Applicable Material

| Cast Iron |

Min D.O.C.

0.0393″

Application

| Inserts |

Depth of Cut Maximum (APMX)

0.1969″

Corner Radius (RE)

0.0472″

Min. Turning Feed (ft(min))

0.0039 ″/rev

Cutting Edge Length (L)

0.508″

Max. Turning Feed (ft(max))

0.0196 ″/rev

Insert Thickness (S)

0.187″

Cutting Direction (HAND)

Neutral

Inscribed Circle Diameter (IC)

1/2″

Chip Breaker Type

Nega-CM

Cutting Edge Material

Carbide

Measurement Type

Inch

Coating

TiCN+Al2O3+TiN

Body Material

Carbide

Grade

T5105

Cutting Edge Effective Length (LE)

0.412″

Fixing Hole Diameter (D1)

0.203″

Unit

Tool Type

Turn Negative Inserts

Product Features

Family Description

Negative relief ang., M class, 80deg rhombic insert, for medium cutting of grey and ductile cast iron

BrandName

Tungaloy

COO

JAPAN

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

FamilyName

CNMG-CM

Shipping Info

Weight per item

0.2403

Name

Turning Indexable Inserts
