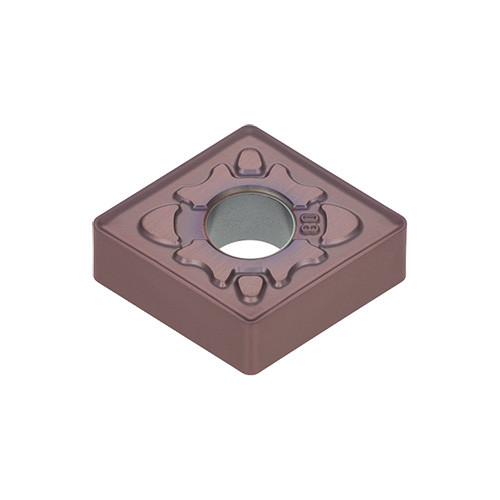

CNMG 433 SDM AH6225
Negative relief ang., M class, 80 deg rhombic insert for medium cutting
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.0394″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1575″ |
| Corner Radius (RE) | 0.0472″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 0.508″ | Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | SDM |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH6225 | Cutting Edge Effective Length (LE) | 0.412″ |
| Fixing Hole Diameter (D1) | 0.203″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class, 80 deg rhombic insert for medium cutting | BrandName | Tungaloy |
| COO | JAPAN | ||
| FamilyName | CNMG-SDM |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
CNMG-SDM
BrandName
Tungaloy
