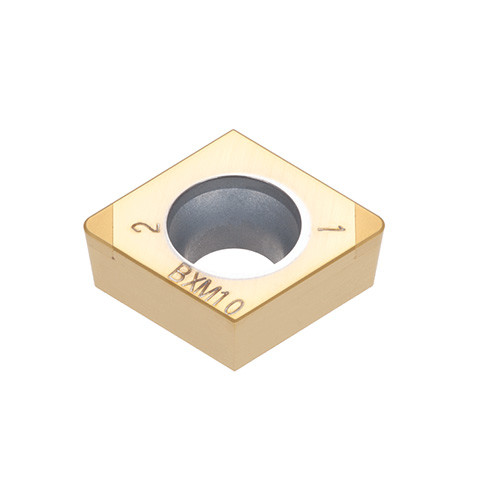

2QP-CCGW 32.52HC BR35F
Positive 7 deg relief angle, M/G class, 80 deg rhombic CBN insert
Price: Log in For Price

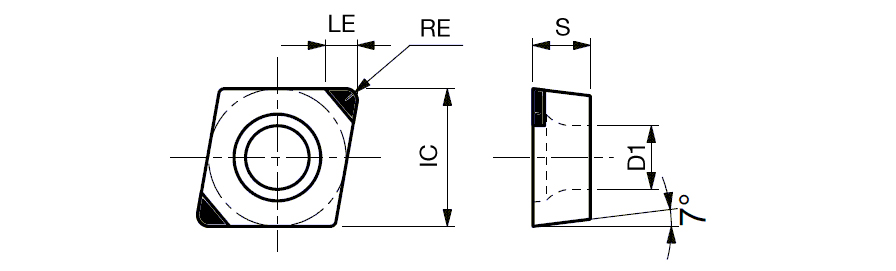

| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0118″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.382″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | HC-CBN |
| Coating | AlCrN | Measurement Type | Inch |
| Grade | BR35F | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.087″ |
| Tool Type | Turn Ultra hard Inserts | Unit | I |
Product Features
| Family Description | Positive 7 deg relief angle, M/G class, 80 deg rhombic CBN insert | FamilyName | 2QP-CCM/GW |
| Remarks | The last letter of designation means Edge preparation (EP) as below. Without letter, SR: Standard EP F: Sharp edge E: EP for preventing vibration and for suppressing work deformation L: EP for reducing flank wear LF: EP for reducing burrs LC: EP for reducing crater wear LT, H, HC: EP for reducing fracture FW, MW, W, WL, WJ, WG: Wiper | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
2QP-CCM/GW
BrandName
Tungaloy
