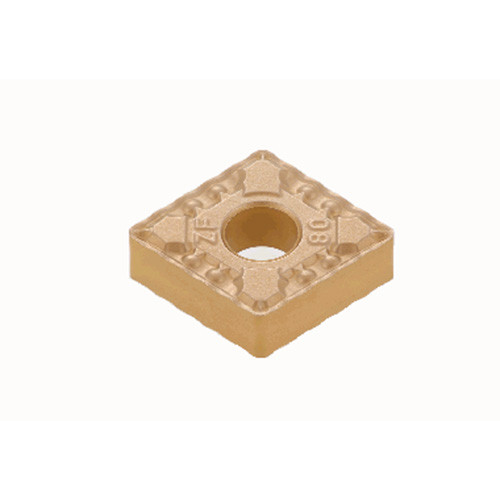

CNMG 430.5 ZF T6215
Negative relief angle, M class, 80 deg rhombic insert for finishing mild steel
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0079″ |
| Corner Radius (RE) | 0.0079″ | Depth of Cut Maximum (APMX) | 0.059″ |
| Cutting Edge Length (L) | 0.508″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0039 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | ZF |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T6215 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Unit | I |
Product Features
| Family Description | Negative relief angle, M class, 80 deg rhombic insert for finishing mild steel | BrandName | Tungaloy |
| COO | JAPAN | ||
| FamilyName | CNMG-ZF |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
CNMG-ZF
BrandName
Tungaloy
