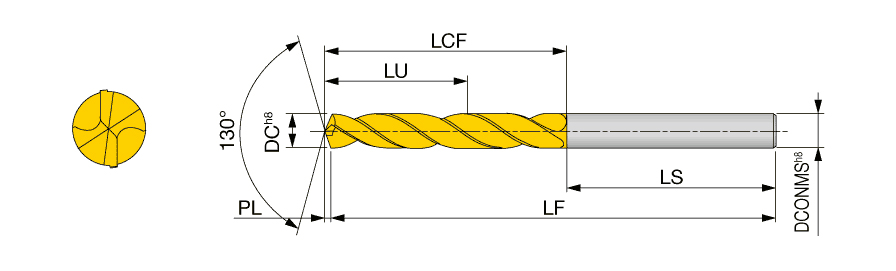

| Drill Bit Size / Cutting Diameter (DC) | 14 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14 mm | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH170 |
| Application | | General Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Usable Length (LU) | 31.3 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 54 mm |
| Point Angle (SIG) | 130 Degrees | Overall Length (OAL) | 107 mm |
| Point Length (PL) | 3.26 mm | Body Material | Carbide |
| Shank Length (LS) | 53 mm | Unit | M |
Product Features

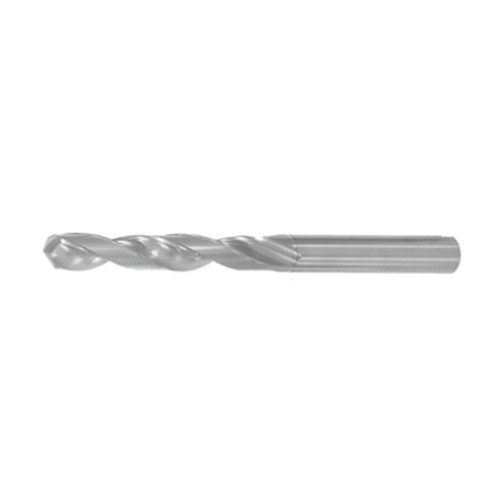

| Family Description | Solid carbide drill without coolant hole, L/D=2 | COO | JAPAN |
| Remarks | Cutting fluid should be sufficiently supplied to the drill point and the entrance of the hole. Use a water soluble cutting fluid. |
Shipping Info
Weight per item
0.2020
