| Drill Bit Size / Cutting Diameter (DC) | 4.1 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.1 mm | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH180 |
| Application | | General Drilling | | Measurement Type | Metric |

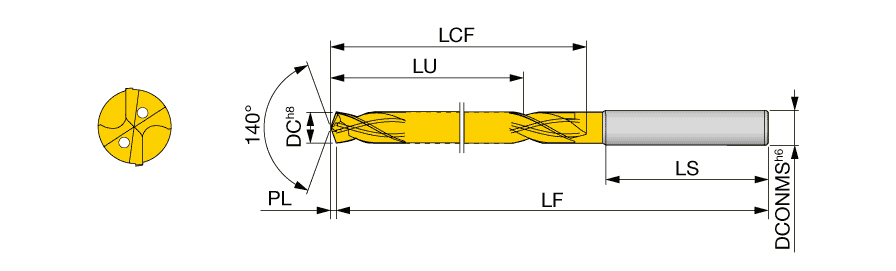

| Connection Diameter Machine Side (DCONMS) | 5 mm | Usable Length (LU) | 33.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 50 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 105 mm |
| Point Length (PL) | 0.75 mm | Body Material | Carbide |
| Shank Length (LS) | 50 mm | Unit | M |
Product Features
| Family Description | GigaJetDrill series with coolant hole, L/D=8 | ||
| COO | JAPAN |
