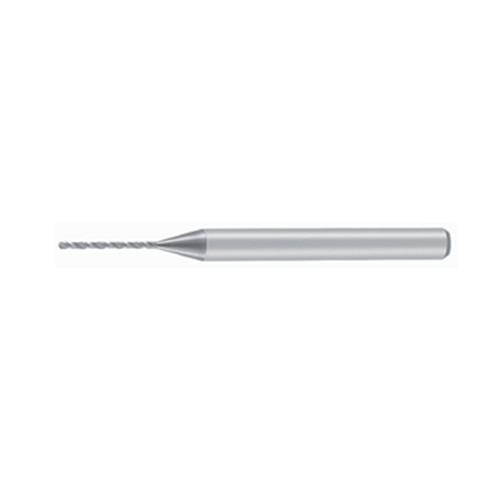

DSM0248G05 YH180
Small dia. solid carbide drill, L/D (ULDR) =5 - 15
| Drill Bit Size / Cutting Diameter (DC) | 2.48 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.48 mm | Cutting Edge Material | Carbide |
| Coating | TiCN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | YH180 |
| Application | | General Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 12.4 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 19.3 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 55 mm |
| Point Length (PL) | 0.45 mm | Body Material | Carbide |
| Shank Length (LS) | 34.1 mm | Unit | M |
Product Features
| Family Description | Small dia. solid carbide drill, L/D (ULDR) =5 - 15 | ||
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
