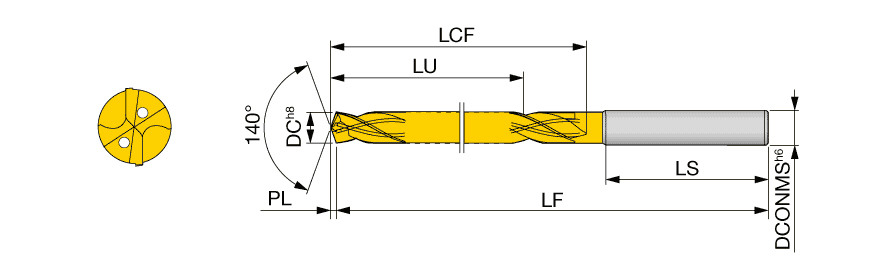

| Drill Bit Size / Cutting Diameter (DC) | 0.3906″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.3906″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3906″ | Tool Type | solid carbide Drills |
| Coating | TiAlN | Grade | AH180 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | General Drilling | | Usable Length (LU) | 1.243″ |
| Connection Diameter Machine Side (DCONMS) | 0.391″ | Length Chip Flute (LCF) | 1.97″ |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 4.17″ |
| Point Angle (SIG) | 140 Degrees | Body Material | Carbide |
| Point Length (PL) | 0.071″ | Unit | I |
| Shank Length (LS) | 2.2″ |
Product Features
| Family Description | GigaJetDrill series with coolant hole, L/D=3 | ||
| COO | JAPAN |
Shipping Info
Weight per item
0.2227
