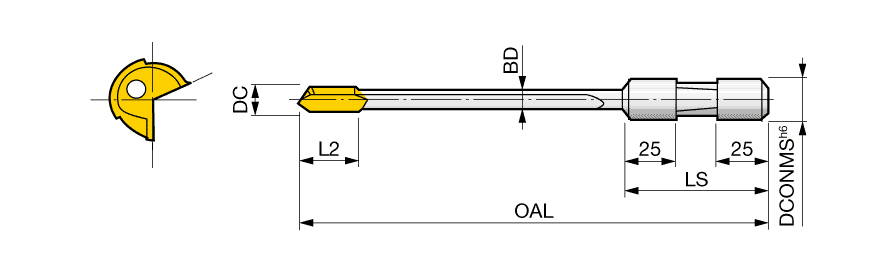

| Drill Bit Size / Cutting Diameter (DC) | 0.2755″ | Shank Type | Central tapered |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2755″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2756″ | Tool Type | Deep Hole / Gun Drill |
| Coating | Uncoated | Grade | G2F |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Gundrill | | Usable Length (LU) | 20.433″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Length Chip Flute (LCF) | 20.567″ |
| Head Length (LH) | 0.984″ | Overall Length (OAL) | 23.622″ |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Point Angle (SIG) | 130 Degrees | Unit | I |
| Shank Length (LS) | 2.756″ |
Product Features
| Family Description | Brazed Gundrills | ||
| COO | JAPAN |
Shipping Info
Weight per item
0.6239
