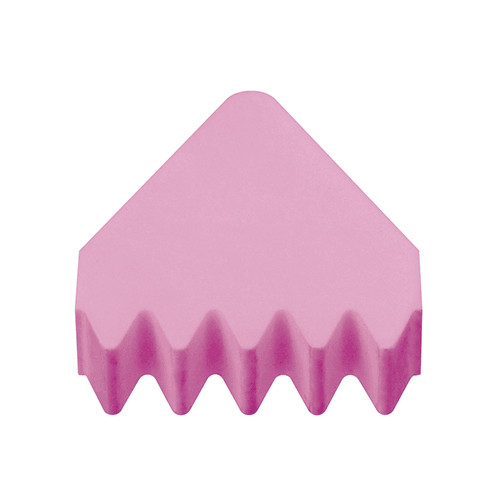

PTM53K50504E02 HW2

Item # NTK7903075

Brand: NTK Cutting Tools

Mfr#: 7903075

Price: Log in For Price

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

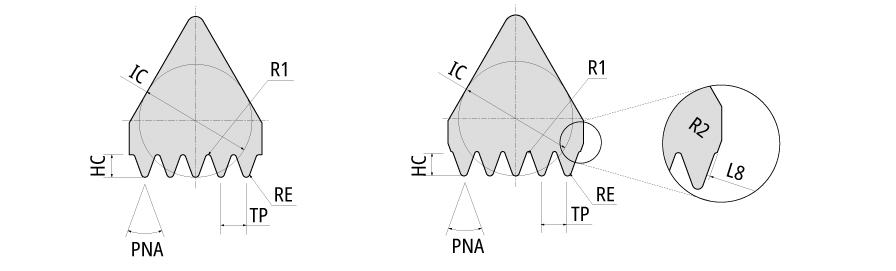

Corner Radius (RE)

0.0197″

Applicable Material

| Cast Iron |

Insert Thickness (S)

0.187″

Thread Pitch Minimum (TPN)

3.56 mm

Inscribed Circle Diameter (IC)

5/8″

Profile Included Angle (PNA)

40 Degrees

Grade

HW2

Measurement Type

Inch

Cutting Edge Material

Ceramic

Body Material

Carbide

Application

| Inserts for turning & grooving |

Unit

Product Features

COO

Japan

BrandName

NTK Cutting Tools

FamilyName

‎PTM53K5 Poly-V Pulley Profiles - 5V INSERT

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Shipping Info

Weight per item

0.0134

Name

Groove/Turn Indexable Inserts
