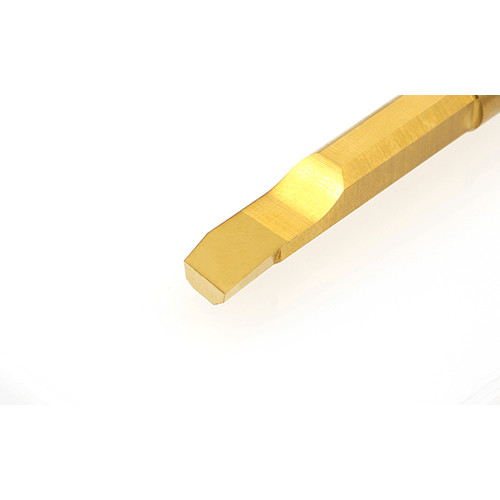

SHFS035R015H TM4

Item # NTK7904342

Brand: NTK

Mfr#: 7904342

Price: Log in For Price

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

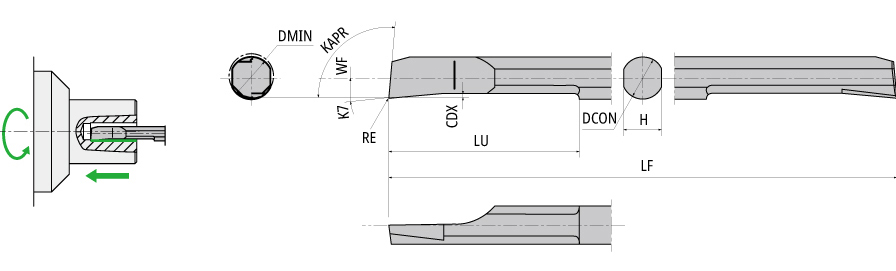

Connection Diameter Machine Side (DCONMS)

0.138″

Functional Width (WF)

0.065″

Minimum Bore Diameter (DMIN)

0.146″

Usable Length (LU)

0.689″

Functional Length (LF)

2.362″

Shank Height (H)

0.126″

Coating

TiCN

Body Material

Carbide

Grade

TM4

Cutting Edge Material

Carbide

Application

| Inserts for miniature |

Measurement Type

Inch

Corner Radius (RE)

0.0059″

Unit

Cutting Depth Maximum (CDX)

0.016″

Product Features

COO

Japan

BrandName

NTK

FamilyName

SHFS-H Mirror finish edge

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Shipping Info

Weight per item

0.0114

Name

Solid Boring Bars
