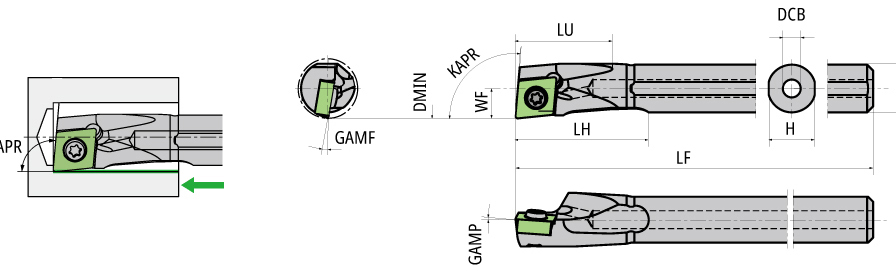

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Application | | Boring | |
| Functional Length (LF) | 3.937″ | Rake Angle Axial (GAMP) | .0 deg |
| Head Length (LH) | 0.866″ | Rake Angle Radial (GAMF) | 13.0 deg |
| Shank Height (H) | 0.303″ | Body Material | Steel |
| Functional Width (WF) | 0.197″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.394″ | Unit | I |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | S-SCLC-OH Mogul Bar |
Shipping Info
Weight per item
0.0870
Name
Indexable Internal Turning Tools
FamilyName
S-SCLC-OH Mogul Bar
BrandName
NTK Cutting Tools
